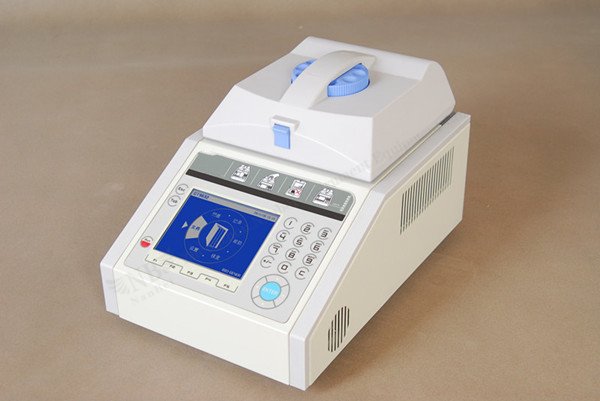

Thermal Cycler (PCR)/ GeneTest This series product adopts 6 pieces custom-made US Marlow peltier, cycle times ＞200000. Steady performance function, easy operation, economic. Key Features 1). The most advanced peltier-based semiconductor t....
Send InquiryIntroduction:
This series product adopts 6 pieces custom-made US Marlow peltier, cycle times ＞200000. Steady performance function, easy operation, economic.
Features:
1). The most advanced peltier-based semiconductor technology.
2). High-performance universal power supply.
3). Large 5.7-inch high-definition LCD display.
4). Bilingual curve graphical interface.
5). Power-down data protection.
6). Metal shell, solid, practical, beautiful and generous.
7). Stepless adjustable hot lid.
8). Lid can be positioned at any angle.
9). High sealing reaction zone to ensure stable and reliable experiment.
Technical parameters:
|
Model
|
General
GT9611(A)GT6021(B)
GT9631(C)GT3841(D)
|
Gradient
GT9612(A)GT6022(B)
GT9632(C) GT3842(D)
|
|
Capacity
|
96×0.2ml(A),60*0.5ml(B), 96×0.2ml+77×0.5ml(C) , 384well(D)
|
|
|
Temperature Range
|
0～99.9℃
|
|
|
Heating Rate
|
4℃/s
|
|
|
Cooling Rate
|
3℃/s
|
|
|
Uniformity
|
≤±0.3℃
|
|
|
Accuracy
|
≤±0.2℃
|
|
|
Display Resolution
|
0.1℃
|
|
|
Temperature Control
|
Block\Tube
|
|
|
Average Ramping Rate Adjustable
|
0.1～2.5℃
|
|
|
Gradient Uniformity
|
/
|
≤±0.3℃
|
|
Gradient Accuracy
|
/
|
≤±0.2℃
|
|
Gradient Temp. Range
|
/
|
30～99.9℃
|
|
Gradient Spread
|
/
|
1～30℃
|
|
Hot Lid Temperature
|
30～110℃
|
|
|
Hot Lid Height Adjustable
|
Stepless Adjustable
|
|
|
Number of Programs
|
200
|
|
|
Max. No. of Segment
|
9
|
|
|
Max. No. of Step
|
9
|
|
|
Max. No. of Cycle
|
99
|
|
|
Time Increment/Decrement
|
1 Sec ～ 9 Min 59 Sec
|
|
|
Temp. Increment/Decrement
|
0.1～9.9℃
|
|
|
Pause Function
|
Yes
|
|
|
Auto Data Protection
|
Yes
|
|
|
Graphical Display
|
Yes
|
|
|
Hold at 4℃
|
Forever
|
|
|
LCD
|
5.7inch，320×240 pels
|
|
|
Communication
|
2USB2.0 , RS232
|
|
|
Dimensions
|
392mm×262mm×252mm (L×W×H)
|
|
|
Weight
|
10kg
|
|
|
Power Supply
|
85～264VAC , 50～60Hz , 600 W
|
|
PCR Machine/Thermal Cycler
NANBEI INSTRUMENT LIMITED has been in the laboratory instrument construction industry for more than 20 years. This is a comprehensive factory dedicated to research, development and manufacturing. We are committed to providing customers with high-quality PCR machines, Real-time PCR, Thermal Cycler, Nucleic acid extractor.
