Gene-Explorer Triple Thermal Cycler PCR

Gene-Explorer Triple Gene-Explorer Triple uses Marlow(US) peltier. Its max. Ramping rate is 4.5 ℃/s and cycle times is more than 200,000. The product combines a variety of advanced technologies: Windows system; color touch screen; 3 block....

Send Inquiry

Introduction:

Gene-Explorer Triple uses Marlow(US) peltier. Its max. Ramping rate is 4.5 ℃/s and cycle times is more than 200,000. The product combines a variety of advanced technologies: Windows system; color touch screen; 3 blocks can run independently; PC on-line function; printing function; big storage capacity and support USB device. All above functions allow PCR’s excellent performance and meet higher experiment’s need.

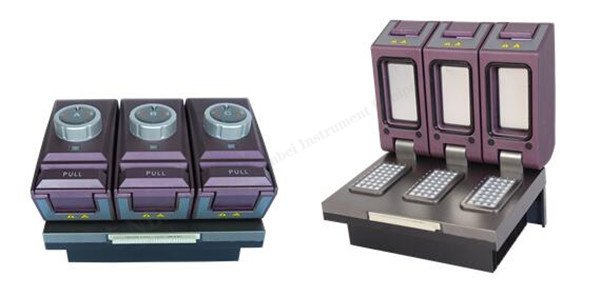

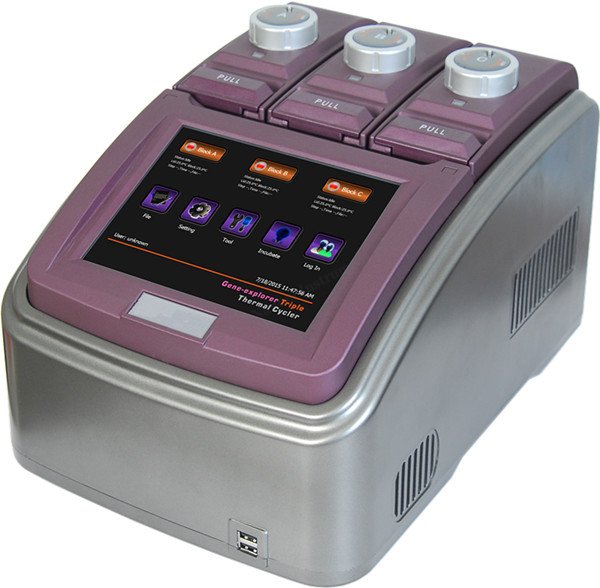

Pictures:

Features:

1. 6 long service life Peltier heating units and form 3 circuits to control 3 temperature zones.

2.Reinforced aluminum module with anodizing technology can keep rapid heating-conducting property and have enough corrosion resistance.

3..High heating and cooling rate, max. Ramping rate 4.5 ℃/s, can save your precious time;

4. 3 blocks independently controlled and can run 3 different PCR programs simultaneously.

5. Stepless adjustable hot lid with pressure-protection, fit tubes of different heights to avoid tube melt and evaporation.

6. Windows interface, 8” ( 800×600, 16 colors) TFT color touch-screen with graphical display provides easy use for setting up and monitoring.

7. Built-in 11 standard program file template, can quickly edit the required files.

8. Folder management, user can build directory.

9.The running program and left time can be displayed in real time , allow to edit file when program is running.

10.One-click quick incubation function can meet experiment’s needs such as denaturation, enzyme cutting/enzyme-link and ELISA.

11.Internal flash memory for 10000 typical PCR files in free configurable folders.

12.Hot lid temperature and hot lid work mode can be set to meet different experiment’s need.

13.Automatic restart after power failure. When power is restored it can continue to run unfinished program.

14.GLP report records every step to provide accurate data support for experiment result analysis.

15.User Login Management, three-tier permission, password protection function to ensure data security.

16.Compatible with devices such as Mouse and Keyboard and capable to transfer data and perform software updates via USB Drive.

17.Support USB and LAN to update software.

18. One computer can control many sets of PCR via network connection.

19.Min type Bluetooth printer as an option, easily record information.

Technical parameters:

Model no.
 GET3X
 Capacity
3×(32×0.2ml )
Temperature Range
0~100℃
 Heating Rate
4.5℃/s
 Cooling Rate
4℃/s
 Uniformity
≤±0.4℃
 Accuracy
≤±0.3℃
 Display Resolution
0.1℃
 Temperature Control
Block\Tube
 Ramping Rate Adjustable
0.1~4.5℃
 Gradient Mode
individually set 3 gradient temp.
 Gradient Temp. Range
30~100℃
 Hot Lid Temperature
30~110℃
 Hot Lid Height Adjustable
 Stepless Adjustable
 Number of Programs
10000 +(USB FLASH)
 Max. No. of Step
30
 Max. No. of Cycle
100
 Time Increment/Decrement
1 Sec ~ 600 Sec
 Temp. Increment/Decrement
0.1~10.0℃
 Pause Function
 Yes
 Auto Data Protection
 Yes
Hold at 4℃
 Forever
Language
/English
 Print
Yes
 LAN to computer
 Yes
 LCD
8 inch,800×600 pels, TFT
 Communication
2USB2.0 , LAN
 Dimensions
390mm×270mm×255mm (L×W×H)
 Weight
9kg
Power Supply
85~264VAC , 47~63Hz , 600 W
