Introduction: Thisseriesproductadopts8piecescustom-madeUSMarlowpeltier,Max.rampingrate5℃,cycletimes＞600000.Moreadvancedtechnologiesappliedontheproduct:Windowsoperatingsystem; colordispayscreen;doubleblockscanrunindependently;replaceable....
Send InquiryIntroduction:
This series product adopts 8 pieces custom-made US Marlow peltier, Max. ramping rate 5℃, cycle times ＞600000. More advanced technologies applied on the product: Windows operating system; color dispay screen; double blocks can run independently; replaceable block; control by PC function; print function; extra large data storage and USB interfaces. All the above functions make it demand high need experiments.

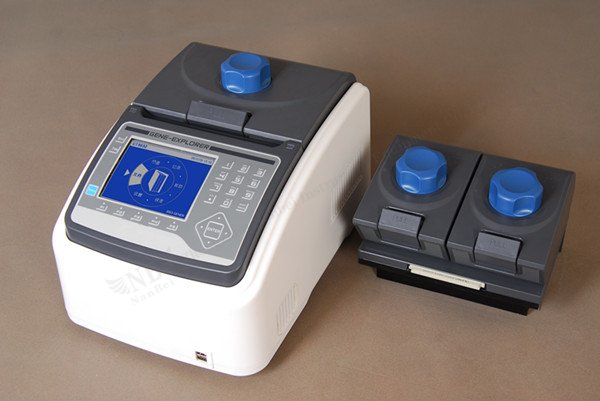

Pictures:
Main Features:
1). Four independent control of semiconductor technology.
2). High-performance universal power supply.
3). Large 5.6-inch high-definition TFT LCD display.
4). Windows operating system, the humanity inter-face.
5). Curve graphic display.
6). LAN online and wireless Bluetooth printing.
7). Power-down data protection.
8). Stepless adjustable hot lid.
9). Lid can be positioned at any angle.
10). Six modules can be replaced easily to meet the requirements of different experiments.
Technical parameters:
|
Model
|
General
GE9611(A)GE6021(B)GE4831(C)
GE3841(D)GE4851(E)
|
Gradient
GE9612(A) GE6022(B)
GE4832(C)GE3842(D)
GE4852(E)
|
|
Capacity
|
96×0.2ml (A), 60×0.5ml (B),
48×0.2ml+30×0.5ml(C),384well(D),Double 48×0.2ml (E)
|
|
|
Temperature Range
|
0～100℃
|
|
|
Max. Heating Rate
|
5℃/s
|
|
|
Max. Cooling Rate
|
4℃/s
|
|
|
Uniformity
|
≤±0.2℃
|
|
|
Accuracy
|
≤±0.1℃
|
|
|
Display Resolution
|
0.1℃
|
|
|
Temperature Control
|
Block\Tube
|
|
|
Ramping Rate Adjustable
|
0.1～5℃
|
|
|
Gradient Uniformity
|
/
|
≤±0.2℃
|
|
Gradient Accuracy
|
/
|
≤±0.2℃
|
|
Gradient Temp. Range
|
/
|
30～100℃
|
|
Gradient Spread
|
/
|
1～30℃
|
|
Hot Lid Temperature
|
30～110℃
|
|
|
Hot Lid Height Adjustable
|
Stepless Adjustable
|
|
|
Number of Programs
|
1000 +(USB FLASH)
|
|
|
Max. No. of Step
|
30
|
|
|
Max. No. of Cycle
|
100
|
|
|
Time Increment/Decrement
|
1 Sec ～ 9 Min 59 Sec
|
|
|
Temp. Increment/Decrement
|
0.1～9.9℃
|
|
|
Pause Function
|
Yes
|
|
|
Auto Data Protection
|
Yes
|
|
|
Hold at 4℃
|
Forever
|
|
|
Print
|
Yes
|
|
|
LAN to computer
|
Yes
|
|
|
LCD
|
5.6inch，640×480 Pixels, TFT
|
|
|
Communication
|
USB2.0 , LAN
|
|
|
Dimensions
|
380mm×240mm×260mm (L×W×H)
|
|
|
Weight
|
8.5kg
|
|
|
Power Supply
|
85～264VAC , 47～63Hz , 600 W
|
|
PCR Machine/Thermal Cycler
NANBEI INSTRUMENT LIMITED has been in the laboratory instrument construction industry for more than 20 years. This is a comprehensive factory dedicated to research, development and manufacturing. We are committed to providing customers with high-quality PCR machines, Real-time PCR, Thermal Cycler, Nucleic acid extractor.
